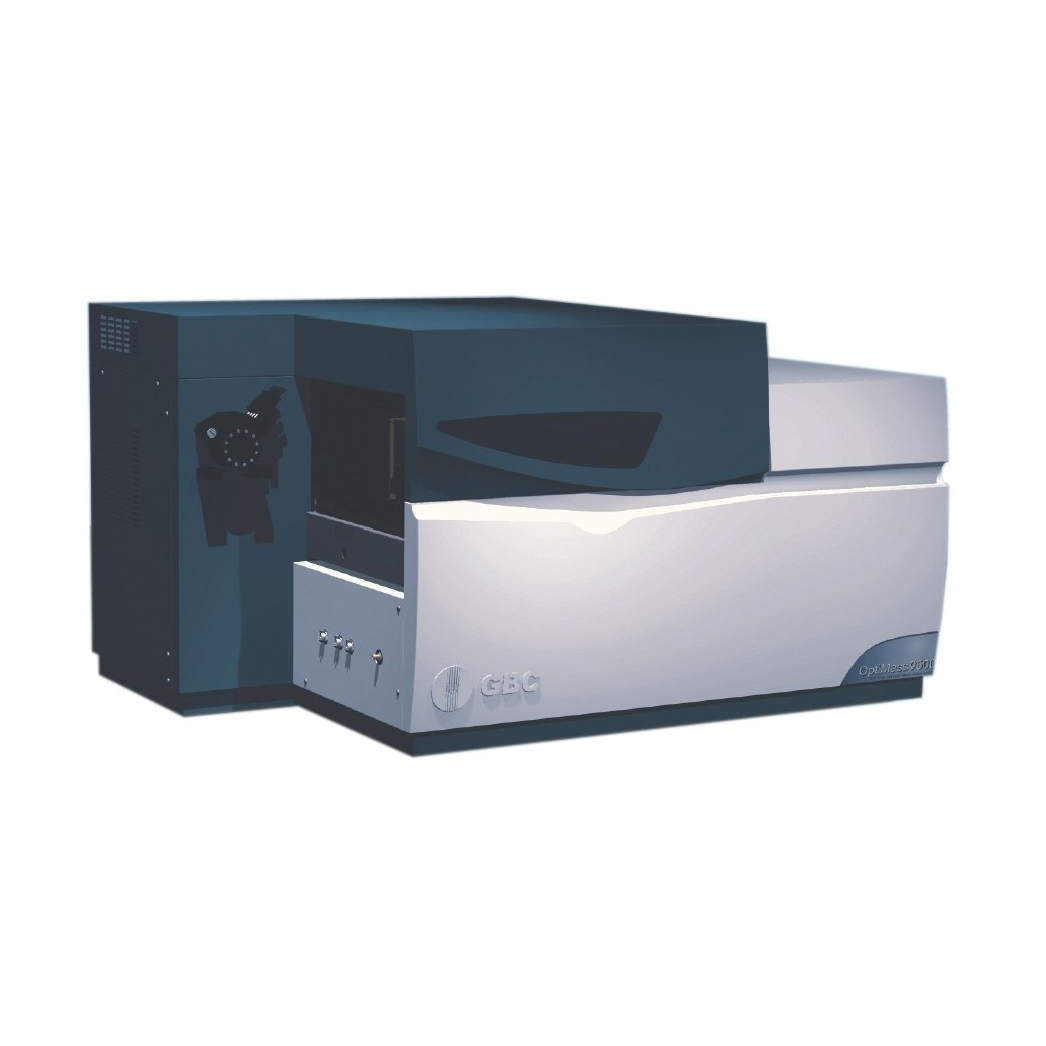

Integra 6000

High-resolution ICP-OES spectrometer with dual grating options for enhanced precision. Equipped with dual PMT detectors for UV and visible regions. Designed for multi-elemental analysis in diverse applications.

• Status: Active
• Country: Australia
• Elemental: Yes
• Type of measurable elements: Metals and non-metals
• Measurable isotopes/elements: Elemental coverage for trace and high-concentration analysis
• Sensitivity : Sub-ppb detection limits for trace elements
• Dynamic range : -
• Signal stability, relative standard deviation : -
• Spray chamber : Cyclonic spray chamber
• Nebulizer : Concentric glass nebulizer with optional configurations for different sample types
• Peristaltic pump : Optional for sample introduction and waste management
• RF generator frequency : 27.12 MHz
• RF generator power : -
• View orientation/observation/optical system : Computer-controlled adjustable viewing position with a vertical range of 20 mm above the coil
• Detection system/detector : Dual photomultiplier tube system: R7154 solar-blind tube for UV detection and R928 wide-band tube for visible detection
• Grating /Wavelength range : Standard: 1800 g/mm holographic grating; Optional: 2400 g/mm holographic grating for higher resolution
• Polychromator : Thermally stabilized polychromator with high resolution and wavelength calibration using up to 60 argon lines
• Typical resolution : 1800 g/mm grating: 0.006 nm (4th order), 0.007 nm (3rd order), 0.009 nm (2nd order), 0.018 nm (1st order) Optional 2400 g/mm grating: 0.004 nm (3rd order)
• Gas supply: Argon ≥99.995% purity
• Power Requirements and Consumption : Standard AC supply
• Environmental requirements : 15–35°C; Humidity: 20–80%
• Dimensions and Weight: Compact design
