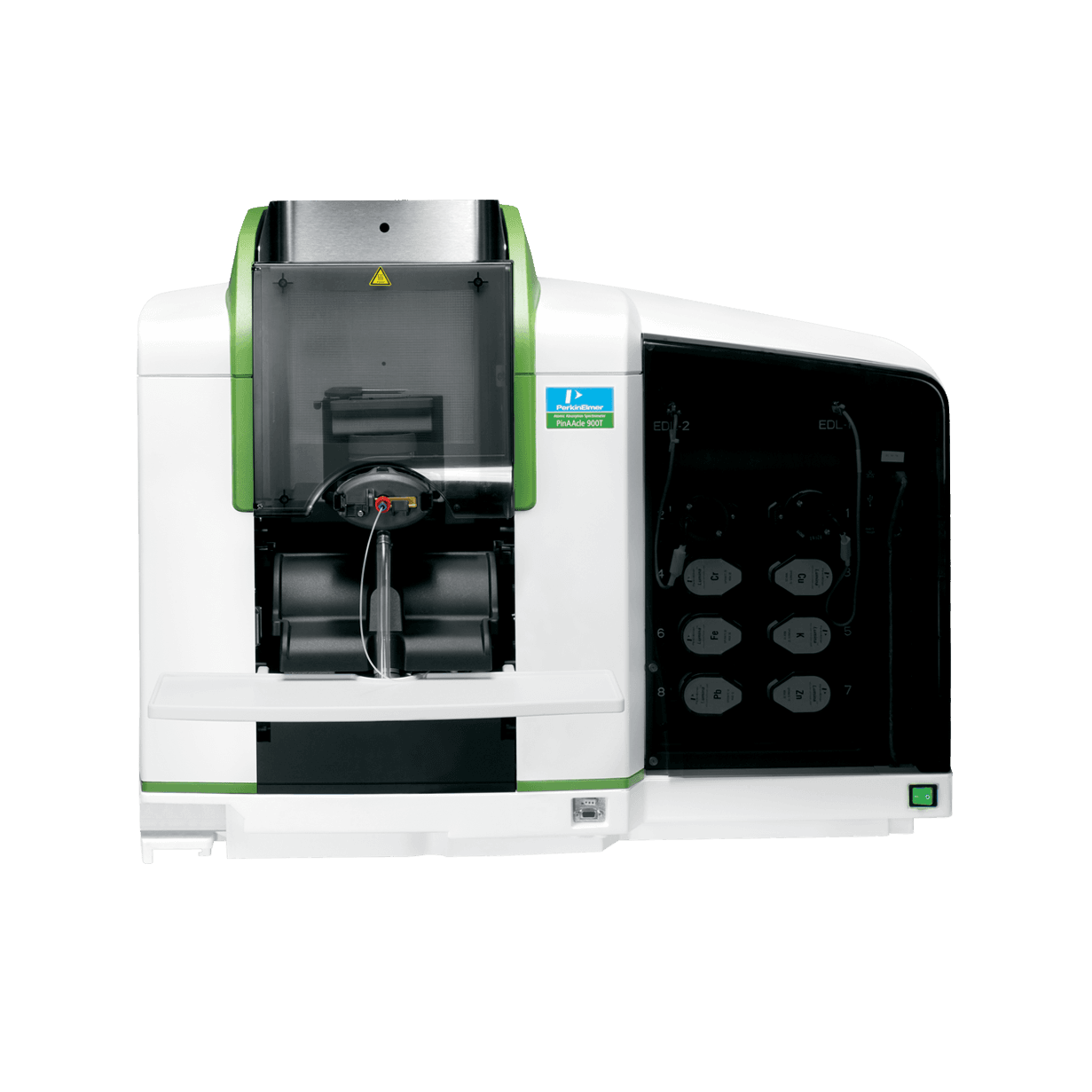

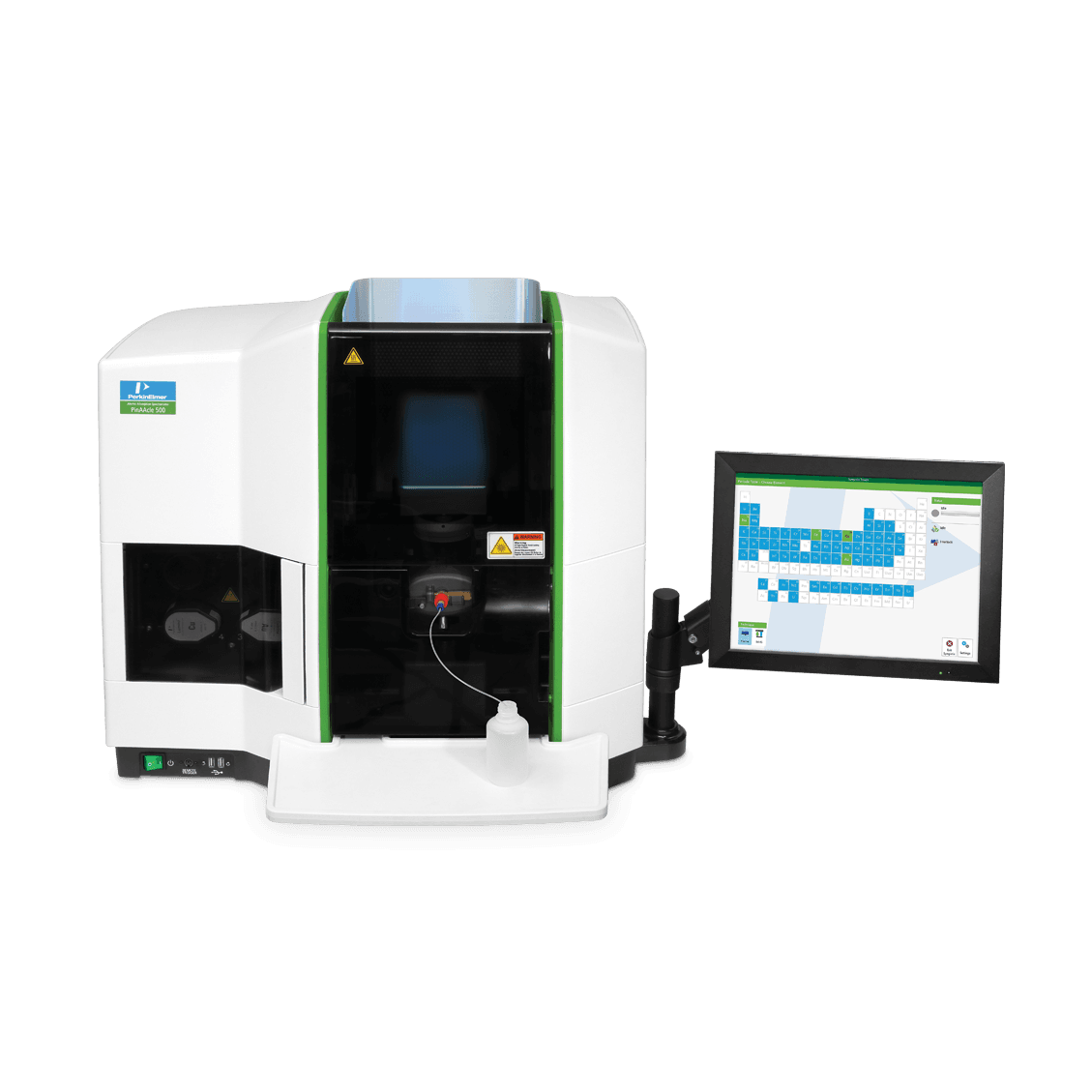

PinAAcle 900Z

Advanced Graphite Furnace AAS with longitudinal Zeeman-effect background correction for ultra-trace analysis.

• Status: Active
• Country: USA
• Elemental: Yes
• Type of measurable elements: Metals and non-metals
• Measurable isotopes/elements: Over 70 elements, including Pb, Cd, Zn, Cu, and Ni
• Signal stability, relative standard deviation : RSD <0.5% for furnace measurements
• Atomizer types : Furnace
• Bandwidth : User-selectable slit widths: 0.2, 0.7, and 2.0 nm
• Wavelength range : 184–900 nm
• Wavelength accuracy : ±0.1 nm
• Background correction : Longitudinal Zeeman-effect background correction with a modulated 0.8 Tesla magnetic field
• Optics type : True double-beam optics with fiber optics for enhanced detection limits
• Gas management : Fully automated inert gas regulation for furnace operations
• Detection system : SSD (segmented, CMOS)
• Monochromator : Littrow design with motorized drive for automatic wavelength selection and peaking
• Lamp carousel : Motorized 8-lamp mount for Lumina™ hollow cathode lamps and electrodeless discharge lamps (EDLs)
• Furnace atomizer : Transversely Heated Graphite Furnace (THGA)
• Furnace vision system : Built-in TubeView color furnace camera for sample monitoring
• Furnace heating rate/max temp : Heating rate up to 3000°C/s; max temperature 3000°C
• Typical tube lifetime : Extended lifetime due to optimized transverse heating
• Sensitivity (Furnace) : Cd detection limit: <0.2 pg
• Safety features : Comprehensive safety interlocks for furnace operations
• Power Requirements and Consumption : 230 V, 50/60 Hz; max 10100 VA
• Environmental requirements : Ambient temperature: +10 °C to +35 °C Relative humidity: 20 to 80% non-condensing
• Dimensions and Weight: 95 cm (37.5 in.) 73 cm (29 in.) 68 cm (27 in.) 127 kg (280 lb)
