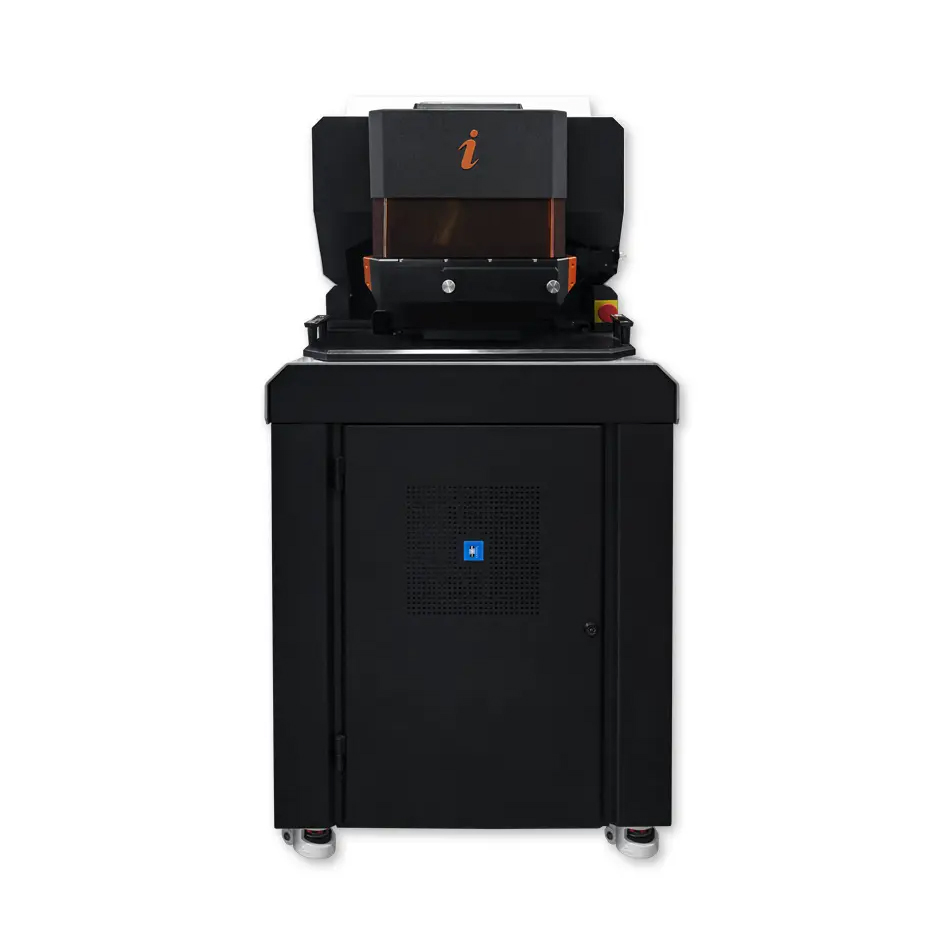

Analyte Excite

Excimer-based ablation system 193 nm with homogenized flat beam profile. Provides high spatial resolution mapping and synchronized fire-on-the-fly ablation. Equipped with high-definition zoom optics and wide illumination options for crater observation.

• Status: Discontinued
• Country: USA
• Device Class (Function) : Laser ablation system
• Technique Compatibility : ICP-MS
• Brand Independence : Yes
• Laser type : Excimer 193 nm
• Performance Metrics : Spot sizes 2.5–150 µm; 30 apertures; pulse <4 ns; synchronized fire-on-the-fly; 100×100 mm stage travel
• Power Requirements and Consumption : -
• Environmental requirements : -
• Dimensions and Weight: -
