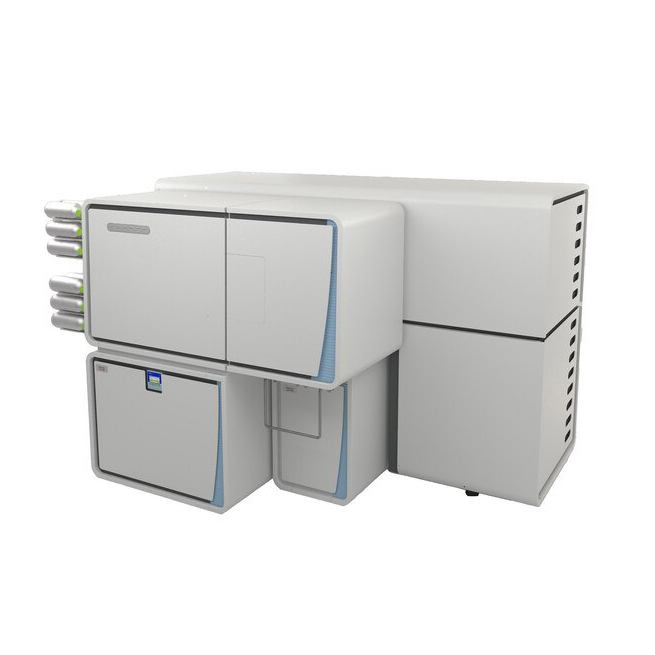

Element XR

Double-focusing magnetic sector HR-ICP-MS with extended dynamic range.

• Status: Active
• Country: Germany
• Isotopic: Yes
• Elemental: Yes
• Type of measurable elements: Metals and non-metals
• Measurable isotopes/elements: Includes rare earths, transition metals, and actinides
• Analyzer type : Magnetic Sector MS
• Ion source type: Inductively Coupled Plasma
• Inlet types: Compatible with HPLC, GC, laser ablation, and autosamplers
• Mass range : 2-260 amu
• High Resolution : Yes
• Mass resolution/ Mass resolving power : Fixed resolutions: 300 (low), 4,000 (medium), 10,000 (high)
• Sensitivity : > 1 x 10⁶ cps/ppb In
• Dynamic range : > 10¹² linear dynamic range
• Detection limits : Down to ppq levels for non-interfering isotopes
• Signal stability, relative standard deviation : <1% over 10 minutes, <2% over 1 hour
• Detector type : Dual mode secondary electron multiplier with Faraday detector for extended dynamic range
• Acceleration voltage : 8 kV
• Reaction cell system : No
• High Matrix Introduction system : Optional
• Spray chamber : Cyclonic spray chamber
• Nebulizer : Concentric nebulizer
• Torch : Torch with a grounded guard electrode
• Interface : Optional Jet interface
• RF generator frequency : 27.12 MHz
• RF generator power : 2 kW
• Geometry type : Nier-Johnson geometry
• Focusing type : Double focusing (magnetic and electrostatic)
• Magnetic sector radius/ angle : 160 mm/ 60 deg
• Electric sector radius/ angle : 105 mm/ 90 deg
• Cooling system : Water-cooled
• Vacuum system : Fully turbo-pumped system
• Gas supply: High-purity argon (>99.996%), optional N2 (for pneumatic)
• Power Requirements and Consumption : 230/400 V ±10 %, 3-phase, 50/60 Hz, fused 32 A per phase
• Environmental requirements : Temperature: 18–24°C; humidity: 50–60%, non-condensing
• Dimensions and Weight: 1741 mm (width) x 880 mm (depth) x 1410 mm (height)
