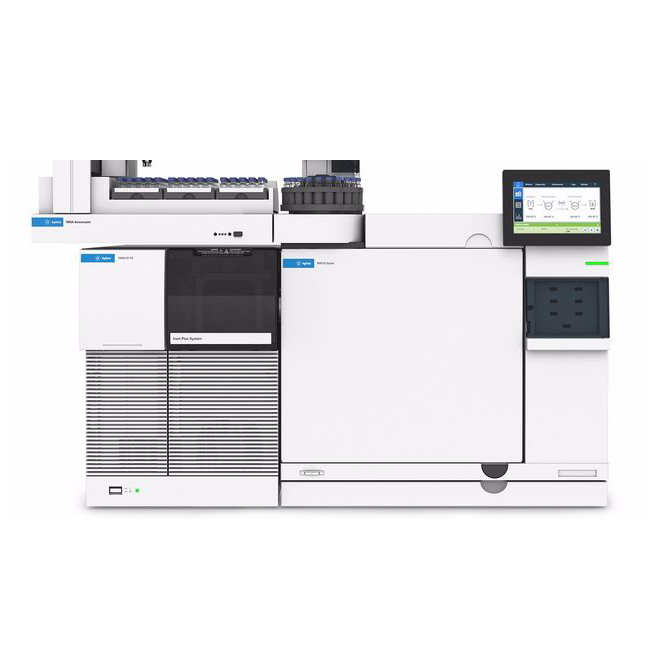

Agilent 8890

Advanced, modular GC system with high precision. Supports multiple inlets and detectors. For complex and high-throughput applications.

• Status: Active
• Country: USA
• Column type : Capillary
• Column type : Packed
• Available detectors : Flame Ionization (FID)
• Available detectors : Thermal Conductivity (TCD)
• Available detectors : Electron Capture (ECD)
• Available detectors : Mass Spectrometry (MSD)
• Available detectors : Nitrogen-Phosphorus (NPD)
• Available detectors : Photoionization (PID)
• Available detectors : Flame Photometric (FPD)
• Available detectors : Sulfur/Nitrogen Chemiluminescence (SCD/NCD)
• Available detectors : Others
• FID details : Max Temp: 450°C, MDL: <1.2 pg C/s, Linear range: 10^7
• TCD details : Max Temp: 400°C, MDL: <400 pg/mL
• ECD details : Max Temp: 400°C, MDL: <3.8 fg/mL lindane
• MSD details : Compatible with Agilent 5977 Series, 7000/7010 Triple Quad, 7250 Q-TOF
• NPD details : Max Temp: 400°C, MDL: <0.08 pg N/s, <0.01 pg P/s
• PID details : Optional
• FPD details : Max Temp: 400°C, MDL: <45 fg P/s, <2.5 pg S/s
• Other detectors : Atomic Emission, PDHID, ELCD, XSD, O-FID
• Inlet types : Split/Splitless , PTV, MMI, PCOC, VI, PPIP
• Injector general parameters: Max Temp: 450°C, Pressure: 0-150 psi
• Flow control : Advanced EPC and EPR
• Autosampler compatibility : Yes (7693A, 7650A, PAL3)
• Data acquisition and control: LAN, Browser Interface, Touchscreen, Remote start/stop
• Column oven specifications : 4°C above ambient to 450°C, 20 ramps, cryogenic cooling (LN2/CO2)
• Safety features : Over-temperature protection, automatic leak checks, sleep mode
• Power Requirements and Consumption : 100-240 V, 1500-2250 W
• Environmental requirements : Ambient: 15-35°C, Humidity: 5-90%
• Dimensions and Weight: H: 49 cm, W: 58 cm, D: 51 cm, 49 kg
