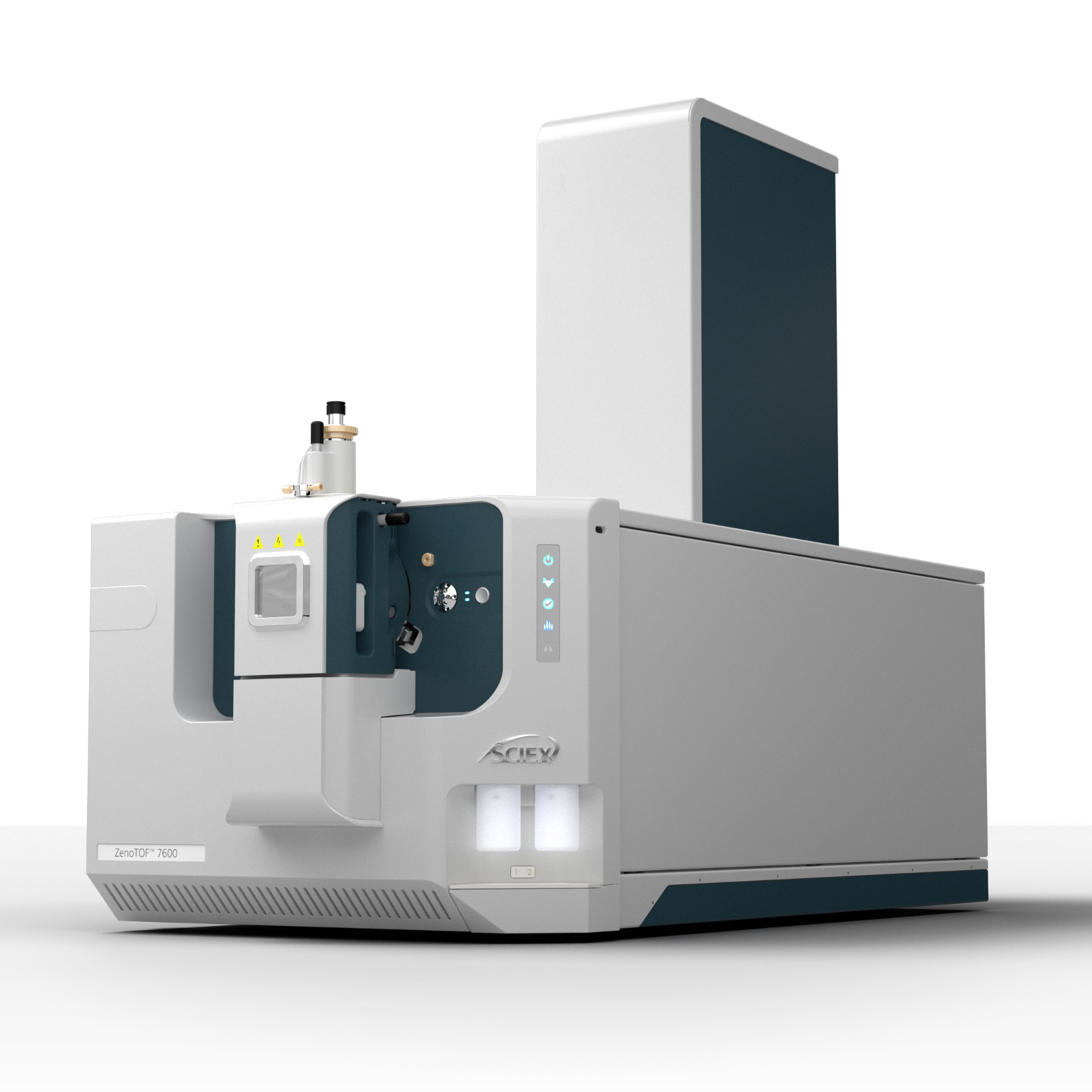

ZenoTOF 7600/7600+

Zeno trap-enabled QTOF. ZT Scan DIA and SWATH supported. Electron-activated dissociation available.

• Status: Active
• Country: USA
• Vacuum system : -
• Power Requirements and Consumption : -
• Environmental requirements : -
• Dimensions and Weight: -
• Analyzer type : Quadrupole/Time-of-Flight MS
• Scan modes : SWATH DIA; ZT Scan DIA (7600+); DDA/IDA; targeted (MRMHR).
• Mass range : 40 to 40 kDa in TOF
• High resolution : Yes
• Mass resolution/ Mass resolving power : ≥ 42,000 at m/z 956.
• Dynamic range : 5 orders of magnitude
• Sensitivity : 5-20× MS/MS sensitivity gain with Zeno trap; >90% ions injected into TOF (duty cycle).
• Mass accuracy/Stability : <2 ppm RMS external; <1 ppm RMS internal.
• Scanning speed : MS/MS up to 133 Hz; up to 640 Hz with ZT Scan DIA (750 Da/s, 5 Da sliding window) on 7600+.
• Dwell time : -
• MRM transition rate : -
• Polarity switching : -
• Fragmentation : EAD; CID; EAD-CID hybrid noted.
• Ion source types (LC-MS) : Turbo V (ESI ; APC; Optiflow Turbo V; nano).
