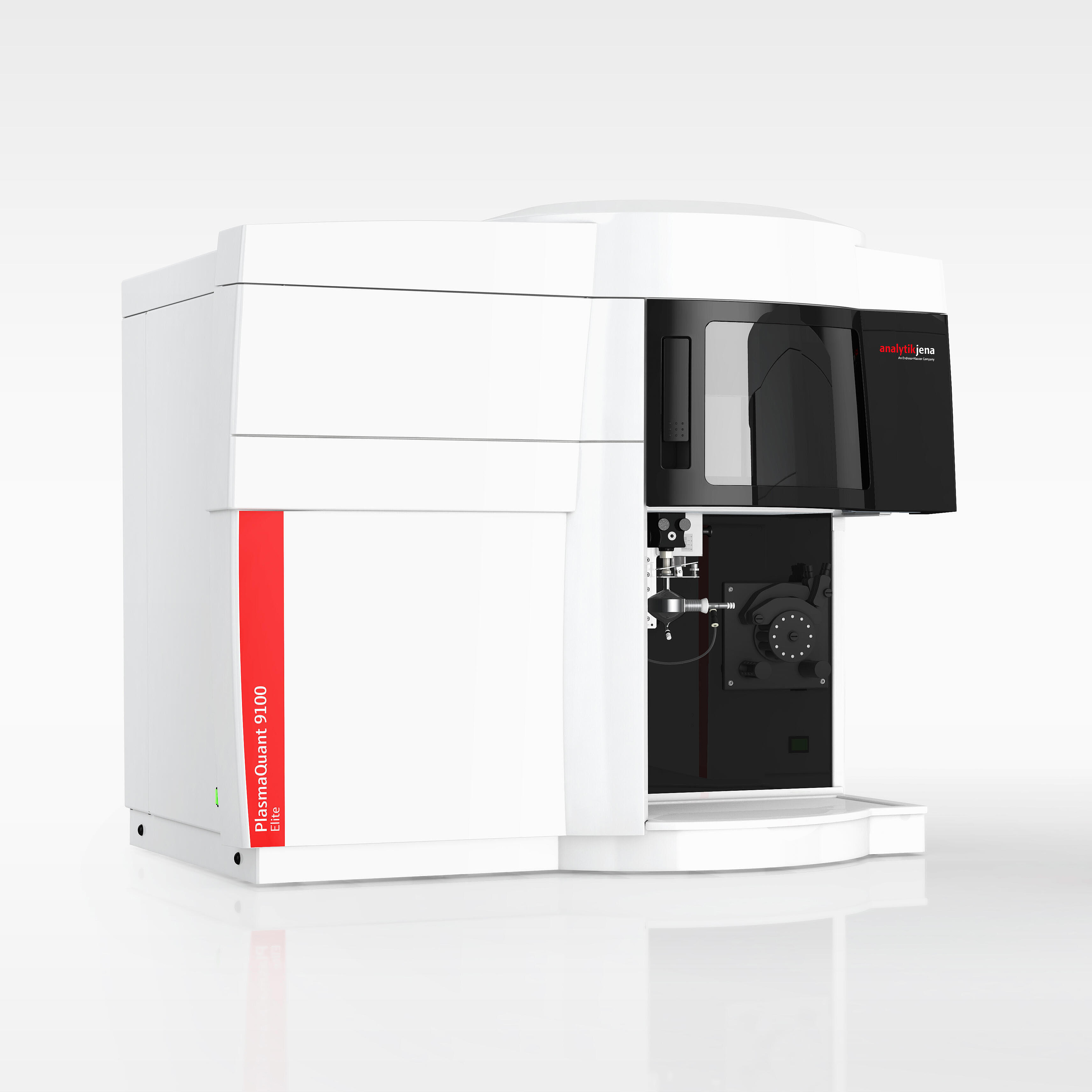

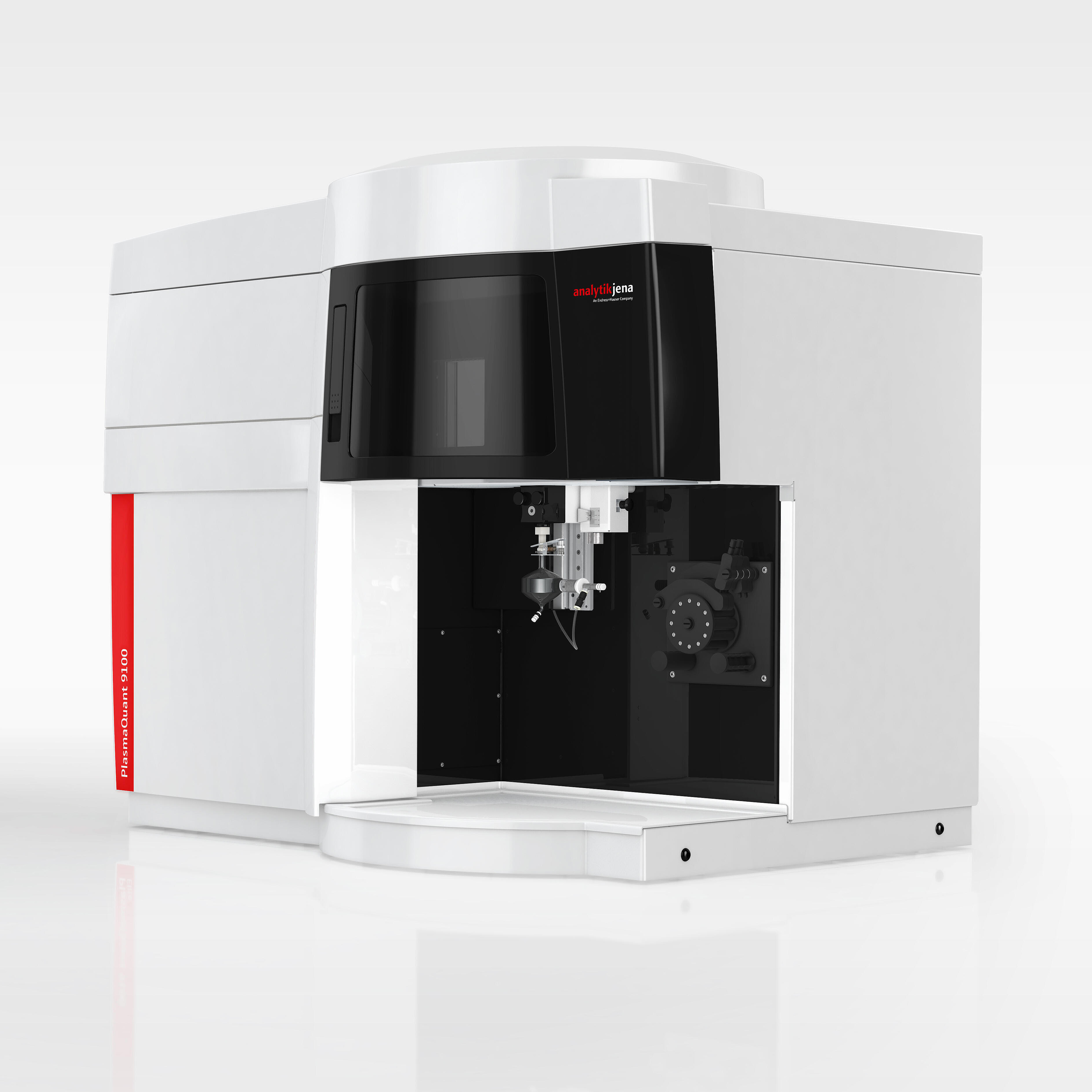

PlasmaQuant 9100

High-resolution ICP-OES with broad applicability for general elemental analysis. Ideal for routine analyses with high sample throughput. Multiple sample introduction kits and methods.

• Status: Active
• Country: Germany
• Elemental: Yes
• Type of measurable elements: Metals and non-metals
• Measurable isotopes/elements: Elemental coverage including alkali, alkaline earth, transition, and heavy metals
• Sensitivity : Sub-ppb detection limits for trace elements with high matrix tolerance
• Dynamic range : Linear over 6 orders of magnitude
• Signal stability, relative standard deviation : Long-term stability <1% RSD with rapid plasma stabilization in <5 minutes
• Spray chamber : Cyclonic or Scott-type spray chamber options
• Nebulizer : Concentric glass nebulizer; optional ultrasonic or parallel-path nebulizers
• Peristaltic pump : 12-roller pump with four channels; compatible with multiple tubing configurations
• RF generator frequency : 40 MHz
• RF generator power : 700–1700 W adjustable in 50 W increments
• View orientation/observation/optical system : Dual View PLUS for simultaneous radial and axial plasma observation; fully automated view optimization
• Detection system/detector : CCD array detector
• Grating /Wavelength range : 160–900 nm with echelle grating and blaze angle of 76°
• Polychromator : Double monochromator with thermally stabilized optics; encapsulated and argon-purged
• Typical resolution : ≤5 pm at 200 nm
• Gas supply: Argon ≥99.996% purity; oxygen integration optional for organic sample combustion
• Power Requirements and Consumption : 230 V ±10%, 50/60 Hz; ~4.6 kVA
• Environmental requirements : Temperature: 15–35°C; Humidity: 20–90% (non-condensing); Atmosphere: Free from corrosive fumes
• Dimensions and Weight: 990 mm W × 940 mm H × 855 mm D; ~170 kg
