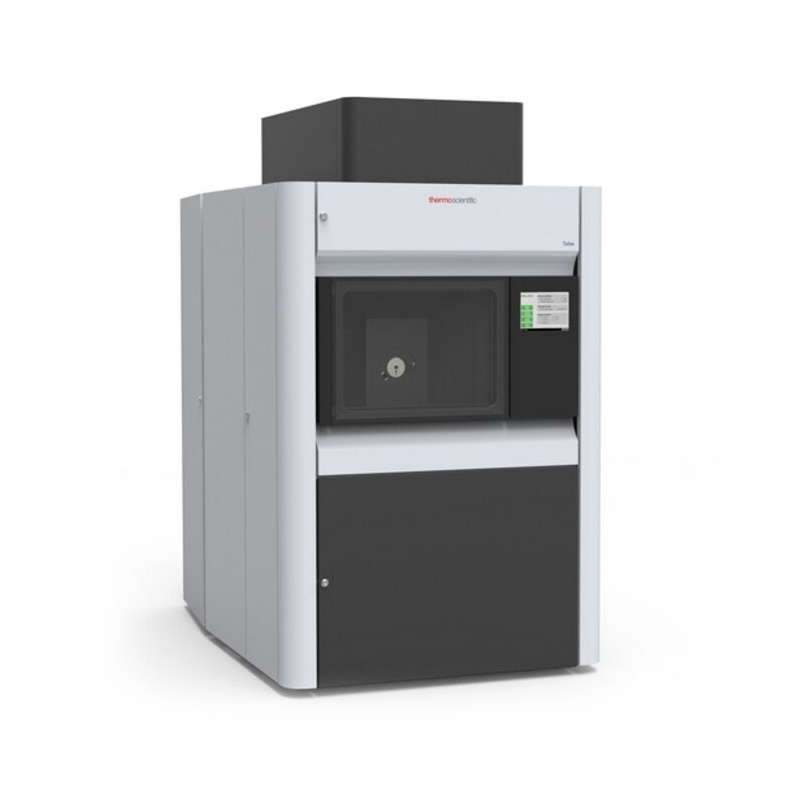

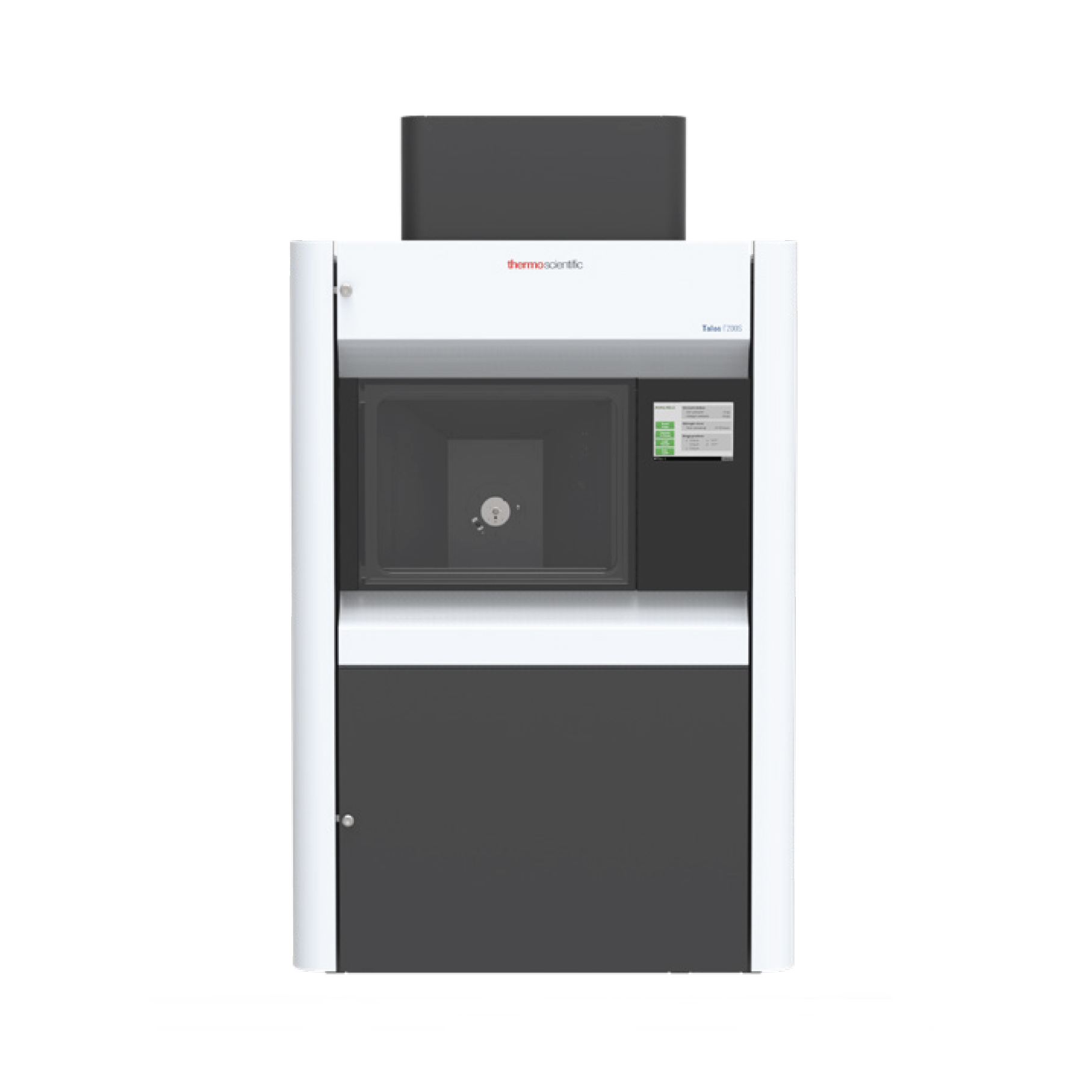

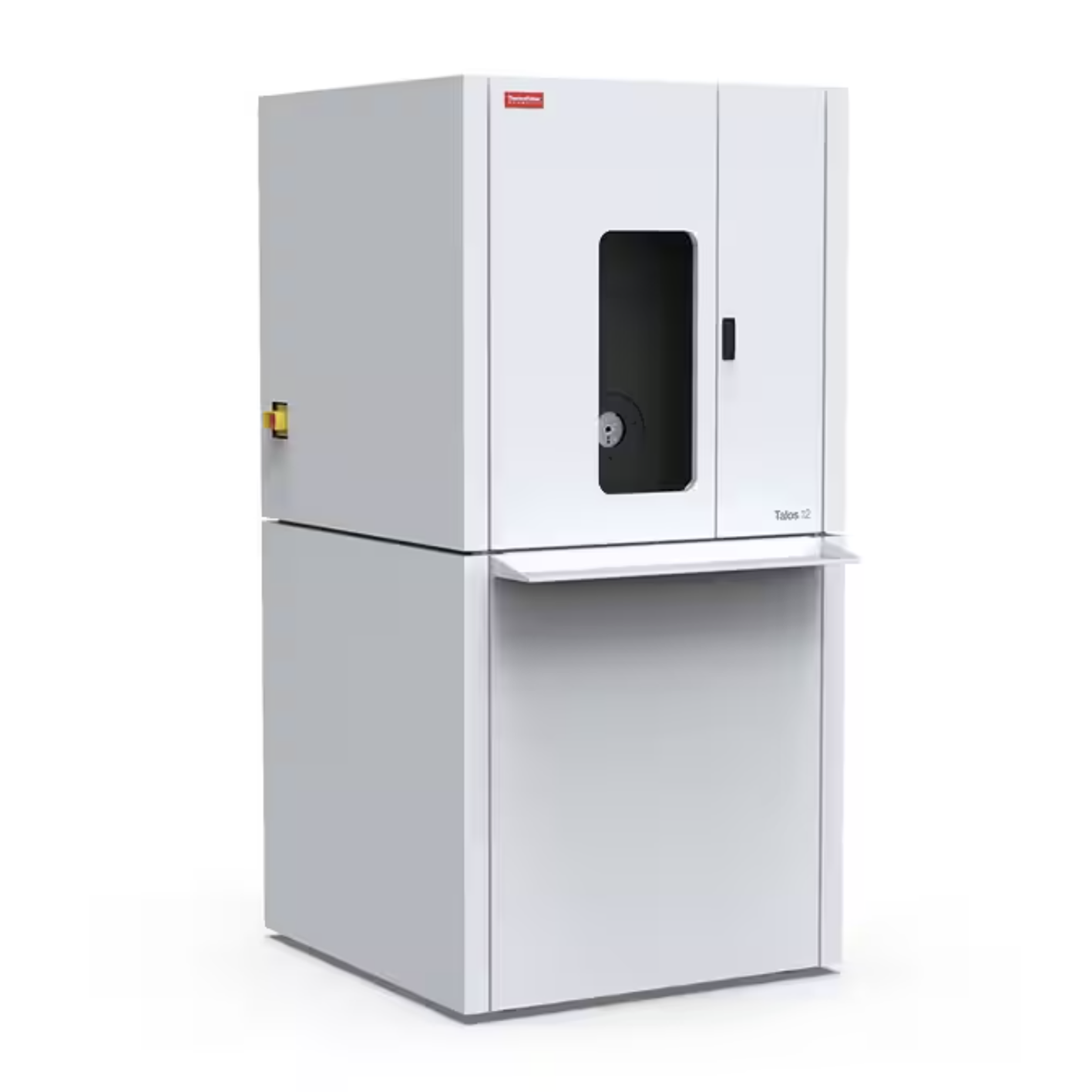

Talos 12 TEM

Multidisciplinary 120 kV transmission electron microscopy.

• Status: Active
• Country: USA
• Electron gun type : W Thermionic source
• Standard detectors : Ceta 16M CMOS, BF/DF STEM, SmartCam
• Optional detectors : EDS, STEM HAADF, BF/DF, Ceta-S/F, Ceta-D, Falcon C Direct Electron Detector (cryo-EM)
• Cryo : Optional
• STEM : Yes
• STEM parameters: HAADF resolution <1.0 nm (LaB₆), BF/DF imaging, tomography workflows
• Electron optics : Constant-power C-Twin objective lens; motorized apertures; low hysteresis design
• Resolution : TEM line: 0.204 nm; TEM point: <0.37 nm; STEM HAADF: <1.0 nm (LaB₆)
• Accelerating voltage : 20 – 120 kV
• Image parameters : TEM magnification 25–650k× (std), 35–910k× (enhanced); STEM magnification 205×–140M×
• Stage parameters : Tilt ±90° (with tomography holder); side-entry mechanism
• Vacuum system : Oil-free with large ion getter pump
• Environmental requirements : Temperature: 18–23 °C; stability ±1 °C/24h, Humidity: <80%
• Vibration, Magnetic, Noise tolerance : Drift Corrected Frame Integration (DCFI), stable optical enclosure
